405 NM LASER (DIODE; CIRCULARIZED BEAM)

Item Code:
0405L-12A-NI-NT-NF
Product status:
Discontinued The product is no longer available. Please contact us regarding alternatives or custom solutions.
Availability:

Description
This 405 nm unit contains a laser diode and proprietary optics for best possible beam homogenization. Equipped with precision optical feedback and smart electronics, this laser provides a performance, which is even better than of gas lasers.
Links and Downloads
About Matchbox
Datasheet
Brochure
User Manual
Drawings
Control Software (Windows)
Accessories
RS232 CONTROL INTERFACE FOR MATCHBOX
AM-C3
2x2.4 A PORT USB POWER SUPPLY
AM-P4
4-PORT USB POWER SUPPLY (US or EU POWER CABLE)
AM-P2
ADAPTER TO M6 FOR MATCHBOX2
AM-H7
REPLACEMENT ADAPTER FOR OBIS LASERS
AM-H5
COMPACT COOLER FOR MATCHBOX 2
AM-H8
Specifications
Last edited on:  9 November 2018
Parameter Minimum Value Typical Value Maximum Value
 Central Wavelength, nm 402 405 408
 Longitudinal modes - multiple -
 Spectral line width FWHM, nm - 0.5 1
 Output power, mW - 70 1 -
 Power stability, % (RMS, 8 hrs) - 1 2 2
 Power stability, % (peak-to-peak, 8 hrs) - 2 3 3
 Noise, % (RMS, 20 Hz to 20 MHz) - 0.25 4 0.6
 Transversal modes - TEM00 -
 Beam Diameter at Aperture (1/e2), mm - 1 -
 Beam divergence (full angle), mrad - less than 0.5 mrad -
 M2 effective - 1.05 1.06
 Polarization direction - Random -
 Control interface type - UART/USB -
 Operation mode - ACC (CW) -
 Modulation bandwidth, MHz - optional 5 -
 Input voltage, VDC 4.8 5 5.3
 External power supply requirement - +5 V DC, 1.5 A -
 Dimensions, mm - 50 x 30 x 18 6 -
 Beam height from the base, mm 9.9 10.4 10.9
 Heat-sinking requirement, °C/W - 0.5 -
 Optimum heatsink temperature, °C 15 20 30
 Warm up time, mins (cold start) 0.1 0.5 1
 Temperature stabilization - Yes -
 Overheat protection - Yes -
 Storage temperature, °C (non-condensing) -10 - 50
 Net weight, kg 0.1 0.12 0.14
 Max. power consumption, W 0.5 2 10
 Warranty, months (op. hrs) - 14 (10000) 7 -
 RoHS - Yes -
 CE compliance - - General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC 		-
 Laser Safety Class - 3B -
 OEM lasers are not compliant with - IEC60825-1:2014 (compliant using additional accessories) -
 Country of origin - Lithuania -
1 The optical power can be tuned from virtually 0% to 100%. However, other specifications, such as central wavelength, power stability, noise, polarization ratio, beam shape, quality and circularity are not guaranteed at power levels other than factory preset power. Significantly worse power stability is to be expected at very low power levels, e.g. <3% from specified nominal power.
2 Long term power test is carried out using an optical power meter with an input bandwidth of 10 Hz. Actual measurement rate has a period of about 20 seconds to 1 minute.
3 Long term power test is carried out using an optical power meter with an input bandwidth of 10 Hz. Actual measurement rate has a period of about 20 seconds to 1 minute.
4 Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.
5 TTL digital modulation up to 10 MHz.
6 Excluding control interface pins and an output window/fiber assembly.
7 Whichever occurs first. The laser has an integrated operational hours counter.
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.

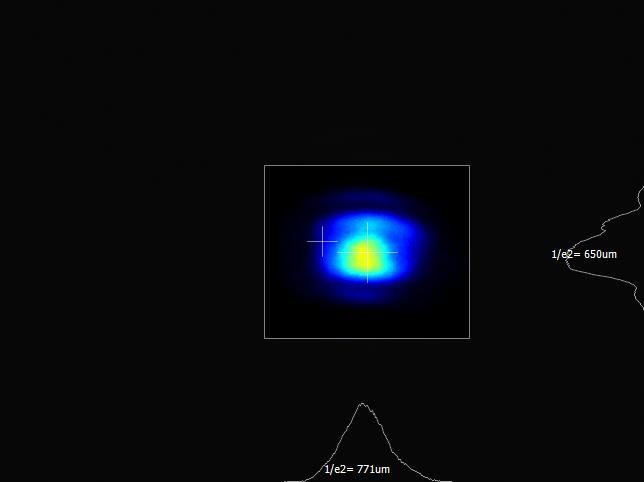

Typical Near Field
Near field beam profile of 405 NM LASER (DIODE; CIRCULARIZED BEAM)
Typical near field (0.45 m from output aperture) beam profile. Circularized (spatially filtered) beam of a 0405 nm direct diode laser.

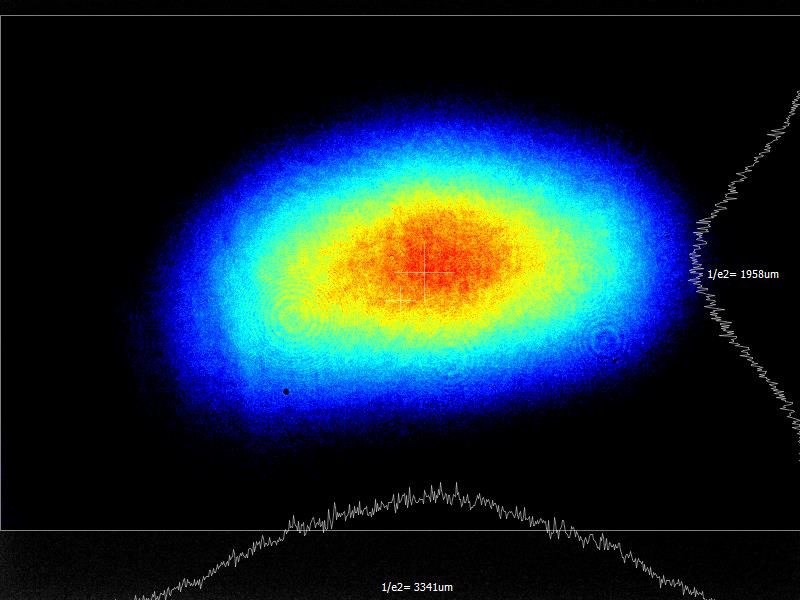

Typical Far Field
Far field beam profile of 405 NM LASER (DIODE; CIRCULARIZED BEAM)
Typical far field (2.75 m from output aperture) beam profile. Circularized (spatially filtered) beam of a 0405 nm direct diode laser.
