975 nm Laser

Item Code: 0975L-11A-NI-NT-NF
Diode Free-space
Preliminary
Product specifications are subject to change, delivery time is less predictable.
Full production
Product specifications are stable. Delivery time is predictable.
Replacement in due course
The product is to be replaced. Please contact us regarding forseeable changes
Not for new designs
The product is to be discontinued. Please contact us for production plans.
Orders still accepted, deliveries still possible
The product will be discontinued soon but we still have some stock of finished items or neccessary components.
No more orders accepted
Some products might be reserved for in-warranty replacement and outstanding orders.
Discontinued
The product is no longer available. Please contact us regarding alternatives or custom solutions.
Available (in stock) Not in stock

Description

975 nm IR wavelength radiation emitted from InGaAs semiconductor (diode) lasers. Such 975 nm lasers are diode laser sources emitting in the near-infrared region. This is a TEM00 free space diode laser module, which could be easily connected and controlled via USB.

Last edited on: 27 November 2023
Parameter Minimum Value Typical Value Maximum Value
 Central wavelength, nm 967 972 977
 Longitudinal modes - Multiple -
 Spectral line width FWHM, nm 0.02 0.5 1.5
 Output power, mW 1 - 170 -
 Power stability, % (RMS, 8 hrs) 2 0.01 0.05 0.25
 Power stability, % (peak-to-peak, 8 hrs) 3 0.05 0.2 1
 Intensity noise, % (RMS, 20 Hz to 20 MHz) 4 0.05 0.25 0.6
 Transversal modes - TEM00 -
 Beam width (1/e2), mm 5 - 1 -
 Beam height (1/e2), mm - 1.1 -
 Horizontal beam divergence, mrad - 1 -
 Vertical beam divergence, mrad - 1 -
 M² horizontal axis - 1.1 1.4
 M² vertical axis - 1.2 1.5
 M² effective - 1.2 1.5
 Polarization direction 6 - Horizontal -
 Polarization contrast 1000 2000 -
 Control interface type 7 - UART -
 Operation mode - APC (CW) -
 Modulation bandwidth, MHz 8 - 10 -
 Input voltage, VDC 4.8 5 5.3
 External power supply requirement - +5 V DC, 1.5 A -
 Dimensions (WxDxH), mm 9 - 50 x 30 x 18 -
 Beam height from the base, mm 9.9 10.4 10.9
 Heat-sinking requirement, °C/W - 1 -
 Optimum heatsink temperature, °C 15 20 30
 Warm up time, mins (cold start) 0.1 0.5 1
 Temperature stabilization - Internal TEC -
 External fan control 10 - No -
 Overheat protection - Yes -
 Storage temperature, °C (non-condensing) -10 - 50
 Net weight, kg 0.1 0.12 0.14
 Max. power consumption, W 0.4 2 10
 Warranty, months (op. hrs) 11 - 14 (10000) -
 RoHS - Yes -
 CE compliance - - General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC
-
 Laser safety class - 3B -
 OEM lasers are not compliant with - IEC60825-1:2014 (compliant using additional accessories) -
 Country of origin - Lithuania -

1 The optical power can be tuned from virtually 0% to 100%. However, other specifications, such as central wavelength, power stability, noise, polarization ratio, beam shape, quality and circularity are not guaranteed at power levels other than factory preset power. Significantly worse power stability is to be expected at very low power levels, e.g. <3% from specified nominal power.

2 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

3 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

4 Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.

5 Beam width and height are measured at 0.4 m from output aperture.

6 For lasers without integrated optical isolators.

7 Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.

8 Modulation is implemented upon request.

9 Excluding control interface pins and an output window/fiber assembly.

10 This function can be enabled in hardware only if the fast modulation option is disabled. The customer must specify this before ordering the laser.

11 Whichever occurs first. The laser has an integrated operational hours counter.

Typical spectrum

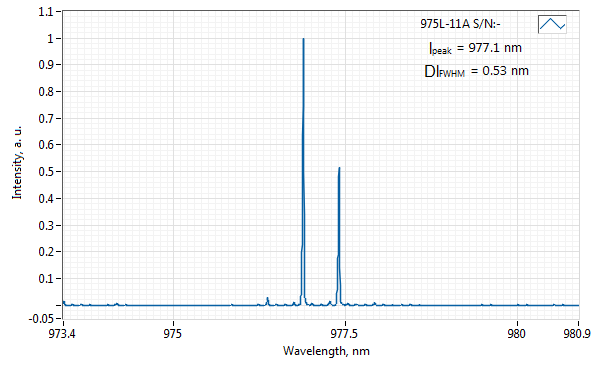

Typical spectrum of 0975 nm diode laser. Measured with 20 pm resolution.

Spectrum of 975 nm Laser
Drawing

The key dimensions of a free-space MatchBox.

Drawing of 975 nm Laser
Typical Near Field

Typical near field (0.45 m from output aperture) beam profile. Non-circularized beam of a 0975 nm direct diode laser.

Near field beam profile of 975 nm Laser
Typical Far Field

Typical far field (1 m from output aperture) beam profile. Non-circularized beam of a 0975 nm direct diode laser.

Far field beam profile of 975 nm Laser
