Compact Fan Cooler For MatchBox®

Item Code: AM-H8
Product specifications are subject to change, delivery time is less predictable.
Full production
Product specifications are stable. Delivery time is predictable.
Replacement in due course
The product is to be replaced. Please contact us regarding forseeable changes
Not for new designs
The product is to be discontinued. Please contact us for production plans.
Orders still accepted, deliveries still possible
The product will be discontinued soon but we still have some stock of finished items or neccessary components.
No more orders accepted
Some products might be reserved for in-warranty replacement and outstanding orders.
The product is no longer available. Please contact us regarding alternatives or custom solutions.
Available (in stock) Not in stock

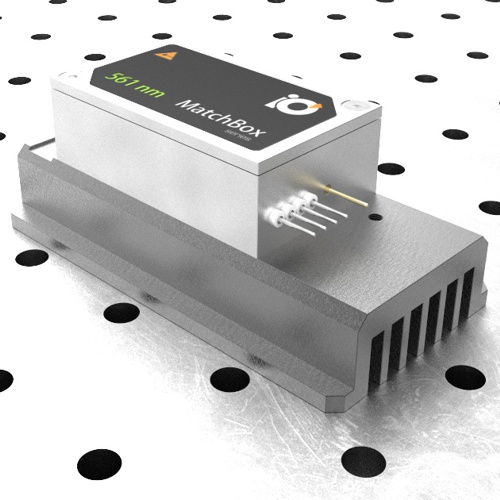

A forced-air heatsink ensures excellent heat dissipation from Matchbox lasers. An integrated centrifugal fan is both efficient and low-vibration. Fan speed is controlled directly from the laser (for all SLM diode lasers as standard). The TTL pin can be configured for PWM output for the fan, based on the body temperature of the laser (measured with an internal thermocouple).

This cooler is a perfect choice for high power diode and most SLM lasers from the MatchBox® series!

  • Convenient fastening for MatchBox lasers in a horizontal orientation
  • Thermal resistance <0.5 C/W

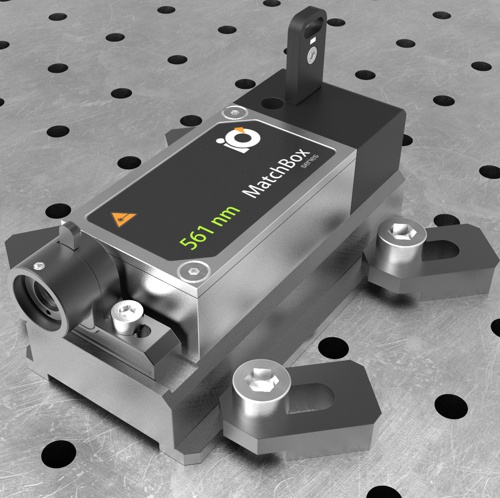

  • The side protrusions can be clamped (clamps are not included and not offered by Integrated Optics) or fixed with screws
  • The surface absorbs laser reflections
  • The variable-speed fan ensures minimal vibrations at low thermal load
  • Beam height - 30.4 mm

A sufficient amount of thermal grease should be used by applying it in a shallow and continuous layer to the bottom part of our lasers! We recommend mounting adapter to an aluminium breadboard. Steel breadboards have poor heat conductivity.

Note: This accessory only includes a heatsink with a suitable connector to connect it to a Break-out-Box®

Last edited on: 19 April 2024
Parameter Minimum Value Typical Value Maximum Value
 Thermal resistance, C/W - <0.5 -
 Dimensions (WxDxH), mm - 42x83x20 -
 Beam height from the base, mm - 30.4 -
 Body material - Aluminium -
 Input voltage, VDC - 5 -
 Input current, A - 0.1 -
 Power input connector - Male headers -
 Data connector - - -
 Mounting holes - M2.5 -
 Net weight, g - 82 -
 Warranty, months (op. hrs) - 14 -
 Country of origin - Lithuania -


Drawing of Compact Fan Cooler For MatchBox®
