CW Lasers
Regular Spectrum Narrow Spectrum 50 mW 100 mW 500 mW 1000 mW 50 mW 100 mW 200 mW 500 mW 50 mW 100 mW 500 mW 1000 mW 50 mW 100 mW 200 mW 500 mW 405 488 515 520 532 633 638 783 785 808 830 980 1030 1064 1550 405 450 488 505 515 520 532 561 593 633 638 660 785 808 830 850 915 980 1030 1064 1123 1319 1342 1550

Features
- One size
- One control interface
- One voltage (+5 VDC)
- One software
- Many wavelengths
- Low cost
- Self-contained design
- Compact and efficient
- Variety of accessories
- Designed for OEM
Designed for Integrators, Adored by Scientists!
MatchBox laser modules are widely configurable and deliver high-end performance in a miniature package. Smart power electronics is installed in the same enclosure. MatchBox offers highest power density and best performance/price ratio.
Applications
- Raman spectroscopy
- Scanning microscopy
- Flow cytometry
- Particle analysis
Links and Downloads
About Matchbox
Brochure
User Manual
Warranty Statement
Drawings
Control Software
375 nm Laser (Diode; Free-Space)

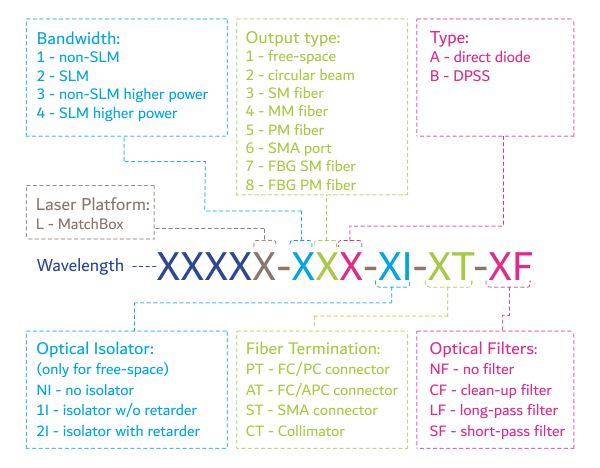

Part No.: 0375L-11A
Central wavelength, nm: 375
Spectral line width FWHM, nm: 0.5
Output power, mW: 60
Power stability, % (RMS, 8 hrs): 1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.5
Output power, mW: 60
Power stability, % (RMS, 8 hrs): 1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
405 nm Laser (Diode; Free-space)
Part No.: 0405L-11A
Central wavelength, nm: 405
Spectral line width FWHM, nm: 0.5
Output power, mW: 180
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.15
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.5
Output power, mW: 180
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.15
Warranty, months (op. hrs): 14 (10000)
405 nm laser (Direct diode; SM Fiber)
Part No.: 0405L-13A
Central Wavelength, nm: 405
Spectral line width FWHM, nm: 0.6
Output power, mW: 100
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.6
Output power, mW: 100
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
405 nm Laser (Diode; MM Fiber)
Part No.: 0405L-14A
Central Wavelength, nm: 405
Spectral line width FWHM, nm: 0.6
Output power, mW: 150
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.6
Output power, mW: 150
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm laser (Diode; PM Fiber)
Part No.: 0405L-15A
Central Wavelength, nm: 405
Spectral line width FWHM, nm: 0.7
Output power, mW: 100
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.7
Output power, mW: 100
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm Laser (Diode; SMA Port)
Part No.: 0405L-16A
Central Wavelength, nm: 405
Spectral line width FWHM, nm: 0.6
Output power, mW: 150
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.6
Output power, mW: 150
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (VBG Diode; Free-space)
Part No.: 0405L-21A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (VBG Diode; SM Fiber)
Part No.: 0405L-23A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 20
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 20
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (VBG Diode; MM Fiber)
Part No.: 0405L-24A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 40
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 40
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (VBG Diode; PM Fiber)
Part No.: 0405L-25A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 20
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 20
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (HP VBG Diode; Free-space)
Part No.: 0405L-41A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 100
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 100
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (HP VBG Diode; SM Fiber)
Part No.: 0405L-43A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (HP VBG Diode; MM Fiber)
Part No.: 0405L-44A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 80
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 80
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
405 nm SLM Laser (HP VBG Diode; PM Fiber)
Part No.: 0405L-45A
Central wavelength, nm: 405
Spectral line width FWHM, pm: 0.1
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, pm: 0.1
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.2
Warranty, months (op. hrs): 14 (10000)
450 nm laser (Diode; Free-Space)
Part No.: 0450L-11A
Central Wavelength, nm: 450
Spectral line width FWHM, nm: 0.8
Output power, mW: 60
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.4
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.8
Output power, mW: 60
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.4
Warranty, months (op. hrs): 14 (10000)
450 nm Laser (Diode; SM Fiber)
Part No.: 0450L-13A
Central Wavelength, nm: 450
Spectral line width FWHM, nm: 0.8
Output power, mW: 35
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.8
Output power, mW: 35
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
450 nm Laser (Diode; MM Fiber)
Part No.: 0450L-14A
Central Wavelength, nm: 450
Spectral line width FWHM, nm: 0.8
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, month: 14 (10000)
Spectral line width FWHM, nm: 0.8
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, month: 14 (10000)
450 nm laser (Diode; PM Fiber)
Part No.: 0450L-15A
Central wavelength, nm: 450
Spectral line width FWHM, nm: 0.8
Output power, mW: 35
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.8
Output power, mW: 35
Power stability, % (RMS, 8 hrs): 0.05
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
450 nm Laser (Diode; SMA Port)
Part No.: 0450L-16A
Central Wavelength, nm: 450
Spectral line width FWHM, nm: 0.8
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.8
Output power, mW: 50
Power stability, % (RMS, 8 hrs): 0.1
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.25
Warranty, months (op. hrs): 14 (10000)
488 nm Laser (Diode; Free-space)
Part No.: 0488L-11A
Central Wavelength, nm: 488
Spectral line width FWHM, nm: 0.5
Output power, mW: 40
Power stability, % (RMS, 8 hrs): 0.02
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.3
Warranty, months (op. hrs): 14 (10000)
Spectral line width FWHM, nm: 0.5
Output power, mW: 40
Power stability, % (RMS, 8 hrs): 0.02
Intensity noise, % (RMS, 20 Hz to 20 MHz): 0.3
Warranty, months (op. hrs): 14 (10000)
