Laser accessories
All accessories offered by Integrated Optics are not necessary for OEM integration of Matchbox lasers, but they are quite handy for laser installations in scientific setups or for fast testing.
- Arrangements for thermal management of lasers. Most of air-cooled, TEC-based heatsinks, as well as heatsinking adapters to traditional breadboards, have a 25 mm M6 pattern.
- Power supplies are used to power-up our lasers, i.e. convert the voltage from 220 V (110 V) AC to 5 V, 9 V, or 12 V DC as required for our lasers.
- Safety accessories such as goggles or CDRH compatible accessories are required for open setups where there is a hazard of specular beam reflection.
Diode Laser Essential Accessory Bundle
Part No.: AM-BUNDLE1
- AM-H8: Compact Fan Cooler For MatchBoxⓇ
- AM-P7: 18W USB type C power supply, PD (power delivery)
- AM-C8: USB Break-out-Box for Single Wavelength MatchBoxⓇ
- USB-C cable for power
- USB-micro cable for data
Laser Combiner Accessory Bundle
Part No.: AM-BUNDLE4
- AM-H8: Compact Fan Cooler For MatchBoxⓇ
- AM-P7: 18W USB power supply, QC3.0
- AM-C9: USB Break-out-Box for Multi-Wavelength MatchBoxⓇ
- USB-C cable for power
- USB-micro cable for data
SLM Laser Essential Accessory Bundle
Part No.: AM-BUNDLE2
- AM-H3: Fan Cooler for MatchBox®
- AM-P8: 60W USB power supply, PD
- AM-C8: USB Break-out-Box for Single Wavelength MatchBoxⓇ
- USB-C cable for power
- USB-micro cable for data
MatchBox Laser High-Performance Accessory Bundle
Part No.: AM-BUNDLE3
- AM-H9: Air Cooled Heatsink With TEC For MatchBoxⓇ
- AM-P8: 60W USB power supply, PD
- USB-C cable for power
- USB-micro cable for data
Standalone High-Performance Accessory Bundle
Part No.: AM-BUNDLE5
- AM-H10: Air Cooled Heatsink With TEC For MatchBoxⓇ
- AM-C8: USB Break-out-Box for Single-Wavelength MatchBoxⓇ
- 2x AM-P8: 60W USB power supply, PD
- 2x USB-C cable for power
- 2x USB-micro cable for data
Stand-alone Air Cooled Heatsink With TEC
Part No.: AM-H10
Dimensions (WxDxH), mm: 74x85x75
Beam height from the base, mm: 75.2
Body material: Aluminium
Input voltage, VDC: 12
Input current, A: 3.4
Power input connector: USB-C or DC jack / flying leads
Data connector: USB-micro
Beam height from the base, mm: 75.2
Body material: Aluminium
Input voltage, VDC: 12
Input current, A: 3.4
Power input connector: USB-C or DC jack / flying leads
Data connector: USB-micro
Air Cooled Heatsink With TEC
Part No.: AM-H9
Dimensions (WxDxH), mm: 73x85x75
Beam height from the base, mm: 72.1
Body material: Aluminium
Input voltage, VDC: 12
Input current, A: 3
Power input connector: USB-C or DC jack / flying leads
Data connector: USB type micro
Beam height from the base, mm: 72.1
Body material: Aluminium
Input voltage, VDC: 12
Input current, A: 3
Power input connector: USB-C or DC jack / flying leads
Data connector: USB type micro
Fan Cooler for MatchBox®
Part No.: AM-H3
Thermal resistance, C/W: <0.5
Dimensions (WxDxH), mm: 86x60x70
Beam height from the base, mm: 68
Body material: Aluminium
Input voltage, VDC: 5
Input current, A: 0.3
Power input connector: Male headers
Dimensions (WxDxH), mm: 86x60x70
Beam height from the base, mm: 68
Body material: Aluminium
Input voltage, VDC: 5
Input current, A: 0.3
Power input connector: Male headers
Fan Cooler for ARA
Part No.: AA-H1
Thermal resistance, C/W: <0.5
Dimensions (WxDxH), mm: 70x150x70
Beam height, mm: 93 (ARA)
Material: Aluminium
Input voltage, VDC: 12
Input current, A: 0.5
Power input connector: Male headers
Dimensions (WxDxH), mm: 70x150x70
Beam height, mm: 93 (ARA)
Material: Aluminium
Input voltage, VDC: 12
Input current, A: 0.5
Power input connector: Male headers
Compact Fan Cooler For MatchBox®
Part No.: AM-H8
Thermal resistance, C/W: <0.5
Dimensions (WxDxH), mm: 42x83x20
Beam height from the base, mm: 30.4
Body material: Aluminium
Input voltage, VDC: 5
Input current, A: 0.1
Power input connector: Male headers
Dimensions (WxDxH), mm: 42x83x20
Beam height from the base, mm: 30.4
Body material: Aluminium
Input voltage, VDC: 5
Input current, A: 0.1
Power input connector: Male headers
Compact TEC-Cooled Mounting Plate For MatchBox
Part No.: AM-H11
Dimensions (WxDxH), mm: 40x80x25
Beam height from the base, mm: 18.4
Body material: Aluminium
Input voltage, VDC : -
Input current, A: 2.2
Power input connector: DC jack / flying leads
Data connector: USB-micro
Beam height from the base, mm: 18.4
Body material: Aluminium
Input voltage, VDC : -
Input current, A: 2.2
Power input connector: DC jack / flying leads
Data connector: USB-micro

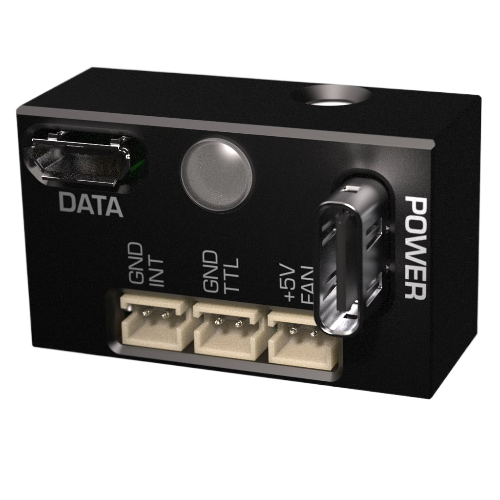

USB Break-out-Box for Single-Wavelength MatchBoxⓇ
Part No.: AM-C8
Dimensions (WxDxH), mm: 30x17x18
Body material: Aluminium
Power input connector: USB-C
Data connector: USB-micro
Warranty, months: 14
Country of origin: Lithuania
Body material: Aluminium
Power input connector: USB-C
Data connector: USB-micro
Warranty, months: 14
Country of origin: Lithuania

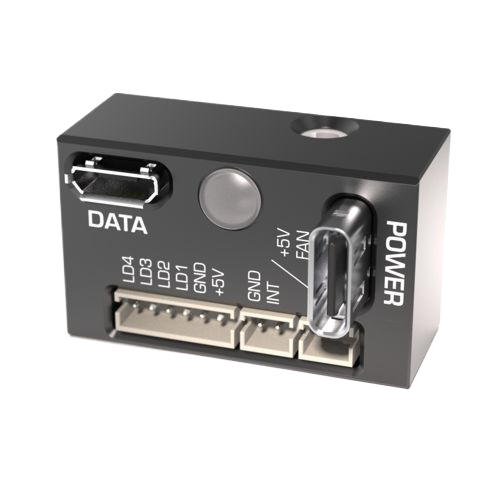

USB Break-out-Box for Multi-Wavelength MatchBoxⓇ
Part No.: AM-C9
Dimensions (WxDxH), mm: 30x17x18
Body material: Aluminium
Power input connector: USB-C
Data connector: USB-micro
Warranty, months: 14
Country of origin: Lithuania
Body material: Aluminium
Power input connector: USB-C
Data connector: USB-micro
Warranty, months: 14
Country of origin: Lithuania
18W USB type C power supply
Part No.: AM-P7
Rated Power, W: 18
Output Voltage, V: 9
Output current, A: 2
Number of USB Ports: 1
Manufacturer: UGREEN
Warranty, months: 14
Output Voltage, V: 9
Output current, A: 2
Number of USB Ports: 1
Manufacturer: UGREEN
Warranty, months: 14
60W USB type C power supply
Part No.: AM-P8
Rated Power, W: 36
Output Voltage, V: 12
Output current, A: 3
Number of USB Ports: 1
Manufacturer: Inateck
Warranty, months: 14
Output Voltage, V: 12
Output current, A: 3
Number of USB Ports: 1
Manufacturer: Inateck
Warranty, months: 14
MatchBoxⓇ Adapter For 25mm Post
Part No.: AM-H12
Dimensions (WxDxH), mm: 62x45x40
Material: Aluminium
Coating: Black anodized
Height adjustment: Yes
Rotation: 360° around Yaw axis
Mounting hole: M4
Warranty, months: 14
Material: Aluminium
Coating: Black anodized
Height adjustment: Yes
Rotation: 360° around Yaw axis
Mounting hole: M4
Warranty, months: 14
XZ Axis Adjustable Shutter With Internal SM05 Thread
Part No.: AM-B7
Material: Aluminium
Coating: Black anodized
Thread for optics: 0.535"-40 (Thorlabs SM05)
Dimensions (WxDxH), mm: 38x15x25
Aperture height adjustment: Yes, fixating
Thread length, mm: 3.6
Coating: Black anodized
Thread for optics: 0.535"-40 (Thorlabs SM05)
Dimensions (WxDxH), mm: 38x15x25
Aperture height adjustment: Yes, fixating
Thread length, mm: 3.6
MatchBox Laser Shutter for 16 mm Cage System
Part No.: AM-B5
Material: Aluminium
Coating: Black anodized
Thread for optics : No
Dimensions (WxDxH), mm: 35x9x24
Aperture height adjustment : No
Clear aperture, mm: 4
Coating: Black anodized
Thread for optics : No
Dimensions (WxDxH), mm: 35x9x24
Aperture height adjustment : No
Clear aperture, mm: 4
Safety key box
Part No.: AM-C7
Dimensions (DxH), mm: 76x41
Material: Aluminium
Weight, g: 207
Warranty, months: 14
Country of origin: Lithuania
Material: Aluminium
Weight, g: 207
Warranty, months: 14
Country of origin: Lithuania
Water-Cooled Adapter To M6 For MatchBox®
Part No.: AM-H4
Dimensions (WxDxH), mm: 50x60x10 (excl. water connectors)
Beam height, mm: 11.4
Coating: Black anode
Material: Aluminium
Mounting holes: M6
Warranty, months: 14
Country of origin: Lithuania
Beam height, mm: 11.4
Coating: Black anode
Material: Aluminium
Mounting holes: M6
Warranty, months: 14
Country of origin: Lithuania
