Replacement Adapter for Coherent CUBE Type of Lasers

Item Code: AM-H6
Preliminary
Product specifications are subject to change, delivery time is less predictable.
Full production
Product specifications are stable. Delivery time is predictable.
Replacement in due course
The product is to be replaced. Please contact us regarding forseeable changes
Not for new designs
The product is to be discontinued. Please contact us for production plans.
Orders still accepted, deliveries still possible
The product will be discontinued soon but we still have some stock of finished items or neccessary components.
No more orders accepted
Some products might be reserved for in-warranty replacement and outstanding orders.
Discontinued
The product is no longer available. Please contact us regarding alternatives or custom solutions.
Available (in stock) Not in stock

Description

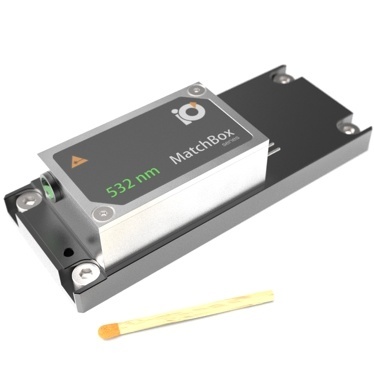

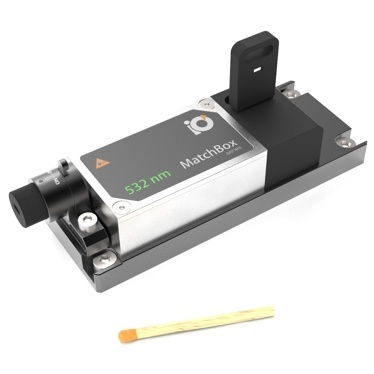

This adapter is designed for a convenient transition from Cube to Matchbox® laser. Same beam height and similar mounting holes' position lets easily change Coherent Cube laser with Matchbox® in your setup.


Features:
  • Ensures good heat dissipation into an optical table
  • Provides quick fastening of the laser
  • Elevates the laser output by 8.6 mm
  • Black anodized against oxidation and scratch
  • The surface absorbs laser reflections
  • It comes with 2 pcs. M4 screws and a key


A sufficient amount of thermal grease should be used by applying it in a shallow and continuous layer to the bottom part of our lasers! We recommend mounting adapter to an aluminium breadboard. Steel breadboards have poor heat conductivity.

Last edited on: 28 February 2023
Parameter Minimum Value Typical Value Maximum Value
 Dimensions (WxDxH), mm - 40x100x9 -
 Beam height from the base, mm - 19 -
 Coating - Black anode -
 Body material - Aluminium -
 Net weight, g - 88.25 -
 Mounting holes - M4 -
 Warranty, months - 14 -
 Country of origin - Lithuania -
Drawing
Drawing of Replacement Adapter for Coherent CUBE Type of Lasers
