1064 nm SLM Laser

Item Code: 1064L-21B-NI-NT-NF
DPSSL Free-space
Preliminary
Product specifications are subject to change, delivery time is less predictable.
Full production
Product specifications are stable. Delivery time is predictable.
Replacement in due course
The product is to be replaced. Please contact us regarding forseeable changes
Not for new designs
The product is to be discontinued. Please contact us for production plans.
Orders still accepted, deliveries still possible
The product will be discontinued soon but we still have some stock of finished items or neccessary components.
No more orders accepted
Some products might be reserved for in-warranty replacement and outstanding orders.
Discontinued
The product is no longer available. Please contact us regarding alternatives or custom solutions.
Available (in stock) Not in stock

Description

Near-infrared, 1064 nanometer DPSS laser is used in number or metrology, homeland security, and military applications. Small size and all-in-one concept of the MatchBox series makes the laser ready for integration into portable handheld devices. This particular 1064 nm narrow bandwidth laser provides 400 mW together with a TEM00 beam.



Note:
In optical systems with strong back-reflections (e.g. more than 10%), the laser does not have to be protected by using an optical isolator, unless high laser operation stability is required. Typical applications include interferometry, confocal microscopy (especially working with reflective samples), etc.

Last edited on: 24 January 2024
Parameter Minimum Value Typical Value Maximum Value
 Central wavelength, nm 1063.7 1064 1064.3
 Longitudinal modes - Single -
 Spectral line width FWHM, MHz 1 - 0,64 1
 Output power, mW 2 - 400 -
 Side-mode suppression ratio (SMSR), dB - 70 -
 Power stability, % (RMS, 8 hrs) 3 0.02 0.1 0.3
 Power stability, % (peak-to-peak, 8 hrs) 4 0.1 0.5 1.5
 Intensity noise, % (RMS, 20 Hz to 20 MHz) 5 0.3 1 1.5
 Transversal modes - TEM00 -
 Beam width (1/e2), mm 6 - 1.1 -
 Beam height (1/e2), mm - 1.1 -
 Horizontal beam divergence, mrad - 1.2 -
 Vertical beam divergence, mrad - 1 -
 M² effective - 1.1 1.3
 Polarization direction 7 - Vertical -
 Polarization contrast 1000 1500 -
 Control interface type 8 - UART -
 Operation mode - APC (CW) -
 Modulation bandwidth, MHz 9 - N/A -
 Input voltage, VDC 4.8 5 5.3
 External power supply requirement - +5 V DC, 5 A -
 Dimensions (WxDxH), mm 10 - 50 x 30 x 18 -
 Beam height from the base, mm 9.9 10.4 10.9
 Heat-sinking requirement, °C/W - 0.5 -
 Optimum heatsink temperature, °C 18 25 32
 Warm up time, mins (cold start) 1 3 5
 Temperature stabilization - Internal TEC -
 Overheat protection - Yes -
 Storage temperature, °C (non-condensing) -10 - 50
 Net weight, kg 0.1 0.12 0.14
 Max. power consumption, W 5 10 20
 Warranty, months (op. hrs) 11 - 14 (10000) -
 RoHS - Yes -
 CE compliance - - General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC
-
 Laser safety class - 3B -
 OEM lasers are not compliant with - IEC60825-1:2014 (compliant using additional accessories) -
 Country of origin - Lithuania -
 Spectral line width FWHM, pm 12 - 0.002 0.004

1 Measured using HighFinesse LineWidth Analyzer LWA-10k having 10 kHz resolution. Linewidth Analyzer testing is not provided for each laser being manufactured, the standard test is OSA measurement with 20-30 pm resolution instead.

2 The optical power of SLM lasers shall not be tuned and SLM performance is not guaranteed at power ratings other than the factory preset. However, the power setting capability is not disabled. External attenuators are recommended.

3 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

4 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

5 Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.

6 Beam width and height are measured at 0.4 m from output aperture.

7 For lasers without integrated optical isolators.

8 Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.

9 SLM lasers shall not be modulated - use external modulators instead.

10 Excluding control interface pins and an output window/fiber assembly.

11 Whichever occurs first. The laser has an integrated operational hours counter.

12 Converted from bandwidth value.

Typical spectrum

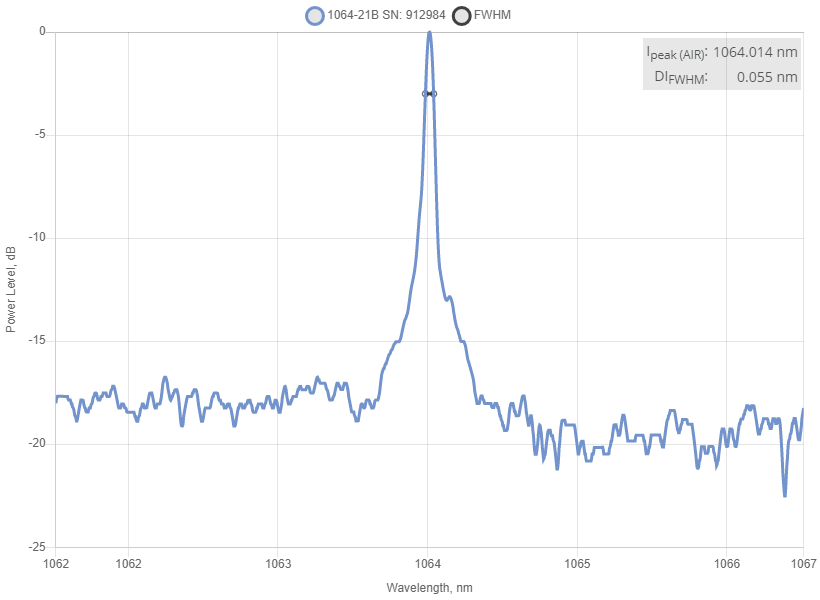

Typical spectrum of 1064 nm DPSS laser. Measured with 20 pm resolution.

Spectrum of 1064 nm SLM Laser
Drawing

The key dimensions of a free-space MatchBox.

Drawing of 1064 nm SLM Laser
Typical Near Field

Typical near field (0.45 m from output aperture) beam profile. Circular beam of a 1064 nm DPSS laser.

Near field beam profile of 1064 nm SLM Laser
Typical Far Field

Typical far field (1 m from output aperture) beam profile. Circular beam of a 1064 nm DPSS laser.

Far field beam profile of 1064 nm SLM Laser
