532 nm Laser (DPSS; SM Fiber)

Select Fiber Termination:

Item Code:
0532L-13B-NI-PT-NF
Product status:
Full production Product specifications are stable. Delivery time is predictable.
Availability:

Description
The compact 532 nm SM (single-mode) fiber-coupled module is a DPSS laser featuring high output power, very good beam quality, and superior long-term power stability. 532 nm wavelength radiation is commonly used in fluorescence excitation, scanning microscopy, and general green light illumination.

By default, this type of laser is built with FC/PC connector, but other fiber terminations are available upon request. Details about non-standard connector and the fiber used with it should be discussed with the Integrated Optics sales team.
Fiber Termination - FC/PC (PT): FC/PC has good insertion repeatability, therefore is often used in single-mode fiber applications. Features a key for polarization-maintaining fiber installations.
Links and Downloads
About Matchbox
Datasheet
Brochure
User Manual
Drawings
Control Software (Windows)
Accessories
MatchBox Laser High-Performance Accessory Bundle
AM-BUNDLE3
USB Break-out-Box for Single-Wavelength MatchBoxⓇ
AM-C8
RS232 Break-out-Box for Single-Wavelength MatchBox®
AM-C3
60W USB type C power supply
AM-P8
Air Cooled Heatsink With TEC
AM-H9
Stand-alone Air Cooled Heatsink With TEC
AM-H10
Compact TEC-Cooled Mounting Plate For MatchBox
AM-H11
Safety key box
AM-C7
Laser Safety Goggles for 180-532 nm
ARG#55
Applications
Laser Diffraction Particle Analysis
Confocal Microscopy
Food sorting
Flow Cytometry
Specifications
Last edited on:  27 December 2022
Parameter Minimum Value Typical Value Maximum Value
 Central Wavelength, nm 532 532.1 532.2
 Longitudinal modes - Multiple -
 Spectral line width FWHM, nm 0.02 0.1 0.3
 Output power, mW - 100 1 -
 Power stability, % (RMS, 8 hrs) - 0.5 2 1
 Power stability, % (peak-to-peak, 8 hrs) - 3 3 25
 Intensity noise, % (RMS, 20 Hz to 20 MHz) - 5 4 30
 Transversal modes - TEM00 -
 M2 effective - 1.05 1.1
 Control interface type - UART 5 -
 Operation mode - APC (CW) -
 Modulation bandwidth, Hz - 500 6 -
 Input voltage, VDC 4.8 5 5.3
 External power supply requirement - +5 V DC, 5A -
 Dimensions, mm - 50 x 30 x 18 7 -
 Fiber Length, m 0.95 1 1.1
 Heat-sinking requirement, °C/W - 0.5 -
 Optimum heatsink temperature, °C 20 25 30
 Warm up time, mins (cold start) 0.2 1 2
 Temperature stabilization - Internal TEC -
 Overheat protection - Yes -
 Storage temperature, °C (non-condensing) -10 - 50
 Net weight, kg 0.1 0.12 0.14
 Max. power consumption, W 5 15 25
 Warranty, months (op. hrs) - 14 (10000) 8 -
 Residual IR wavelength contrast, dB - 20 -
 RoHS - Yes -
 CE compliance - - General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC 		-
 Laser Safety Class - 3B -
 OEM lasers are not compliant with - IEC60825-1:2014 (compliant using additional accessories) -
 Country of origin - Lithuania -
1 The optical power can be tuned from virtually 0% to 100%. However, other specifications, such as central wavelength, power stability, noise, polarization ratio, beam shape, quality and circularity are not guaranteed at power levels other than factory preset power. Significantly worse power stability is to be expected at very low power levels, e.g. <3% from specified nominal power.
2 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.
3 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.
4 Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.
5 Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.
6 TTL modulation is enabled on request.
7 Excluding control interface pins and an output window/fiber assembly.
8 Whichever occurs first. The laser has an integrated operational hours counter.
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.

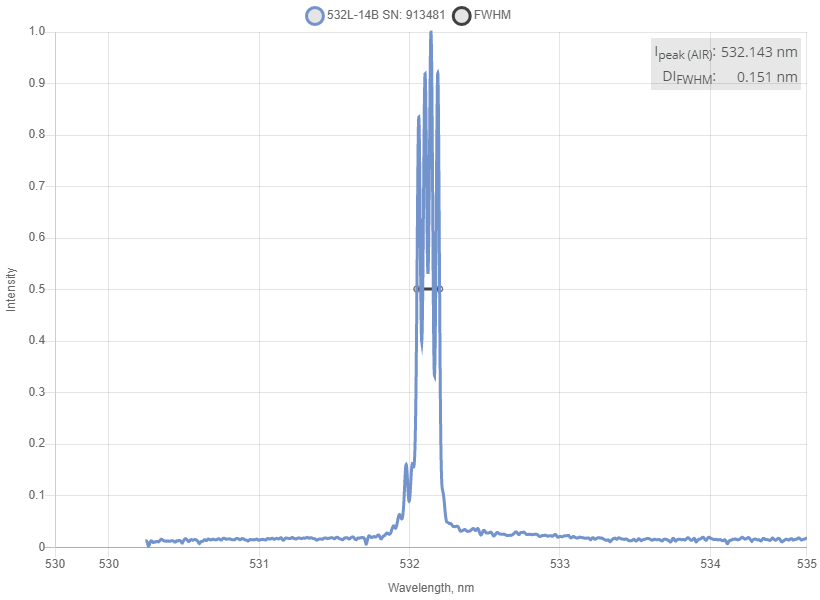

Typical spectrum
Spectrum of 532 nm Laser (DPSS; SM Fiber)
Typical spectrum of 0532 nm DPSS laser. Measured with 20 pm resolution.
Typical Near Field
Near field beam profile of 532 nm Laser (DPSS; SM Fiber)
Drawing
Drawing of 532 nm Laser (DPSS; SM Fiber)
The key dimensions of a fiber-coupled MatchBox.
