532 nm SLM Laser

Item Code: 0532L-21B-NI-NT-NF

DPSSL Free-space

Preliminary

Full production

Replacement in due course

Not for new designs

Orders still accepted, deliveries still possible

No more orders accepted

Discontinued

Available (in stock) Not in stock

Description

Green single-frequency laser at 532 nm is one of the most important lines for Raman excitation. A very narrow spectrum combined with good beam quality makes this laser perfect for scanning micro Raman applications.
The 532 nm SLM laser is a very compact DPSS module for portable diagnostic applications, RGB holography, as well as various scientific setups. The module contains a powerful TEC cooler, microprocessor-based electronics, a USB control interface, and many useful accessories for ease of integration. In portable applications, this laser can be powered from conventional USB power banks. For fiber delivery, please check MM, SM, PM fiber output options. Higher output power is available on request.

Note:

In optical systems with strong back-reflections (e.g. more than 10%), the laser does not have to be protected by using an optical isolator, unless high laser operation stability is required. Typical applications include interferometry, confocal microscopy (especially working with reflective samples), etc.

Last edited on: 31 July 2024

Parameter	Minimum Value	Typical Value	Maximum Value
Central wavelength, nm	531.9	532.0	532.1
Spectral line width FWHM, MHz ¹	-	2	6
Output power, mW ²	-	50	-
Power stability, % (RMS, 8 hrs) ³	0.03	0.1	0.3
Power stability, % (peak-to-peak, 8 hrs) ⁴	0.1	0.4	1
Intensity noise, % (RMS, 20 Hz to 20 MHz) ⁵	0.3	0.7	1
Longitudinal modes	-	Single	-
Transversal modes	-	TEM00	-
Side-mode suppression ratio (SMSR), dB	-	70	-
Beam width (1/e2), mm ⁶	0.6	0.9	1.2
Beam height (1/e2), mm	0.6	0.8	1.2
Horizontal beam divergence, mrad	0.9	1.1	1.7
Vertical beam divergence, mrad	0.9	1.1	1.7
M² horizontal axis	-	1.05	1.3
M² vertical axis	-	1.05	1.2
M² effective	-	1.05	1.2
Polarization direction ⁷	-	Vertical	-
Polarization contrast	500	2000	-
Control interface type ⁸	-	UART	-
Operation mode ⁹	-	APC (CW)	-
Modulation bandwidth, MHz ¹⁰	-	N/A	-
Input voltage, VDC	4.8	5	5.3
Input current, A	-	5	-
Max. power consumption, W	10	15	25
Heat-sinking requirement, °C/W	-	0.5	-
Optimum heatsink temperature, °C	18	25	32
Warm up time, mins (cold start)	1	3	5
Temperature stabilization	-	Internal TEC	-
External fan control	-	Yes	-
Overheat protection	-	Yes	-
Storage temperature, °C (non-condensing)	-10	-	50
Beam height from the base, mm	9.9	10.4	10.9
Dimensions (WxDxH), mm ¹¹	-	50 x 30 x 18	-
Net weight, kg	0.1	0.12	0.14
Laser safety class	-	3B	-
Residual IR wavelength contrast, dB	-	20	-
RoHS	-	Yes	-
CE compliance	-	- General Product Safety Directive (GPSD) 2001/95/EC - (EMC) Directive 2004/108/EC	-
OEM lasers are not compliant with	-	IEC60825-1:2014 (compliant using additional accessories)	-
Warranty, months (op. hrs) ¹²	-	14 (10000)	-
Country of origin	-	Lithuania	-
Spectral line width FWHM, pm ¹³	-	0.002	0.005

¹ Measured using HighFinesse LineWidth Analyzer LWA-10k having 10 kHz resolution. Linewidth Analyzer testing is not provided for each laser being manufactured, the standard test is OSA measurement with 20-30 pm resolution instead.

² The optical power of SLM lasers shall not be tuned and SLM performance is not guaranteed at power ratings other than the factory preset. However, the power setting capability is not disabled. External attenuators are recommended.

³ The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

⁴ The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

⁵ Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.

⁶ Beam width and height are measured at 0.4 m from output aperture.

⁷ For lasers without integrated optical isolators.

⁸ Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.

⁹ APC - Automatic Power Control.

¹⁰ SLM lasers shall not be modulated - use external modulators instead.

¹¹ Excluding control interface pins and an output window/fiber assembly.

¹² Whichever occurs first. The laser has an integrated operational hours counter.

¹³ Converted from bandwidth value.

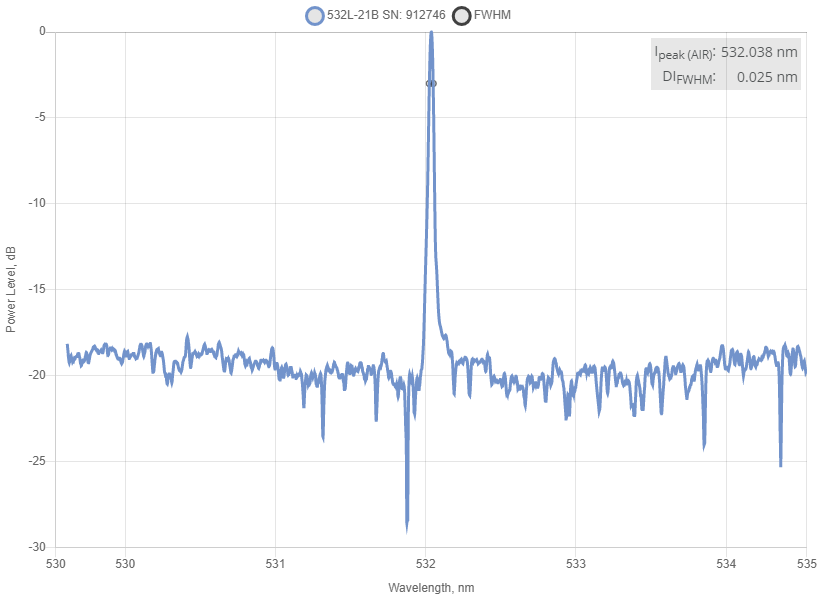

Typical spectrum

Typical spectrum of 0532 nm DPSS laser. Measured with 20 pm resolution.

Drawing

The key dimensions of a free-space MatchBox.

Typical Near Field

Typical near field (0.45 m from output aperture) beam profile. Circular beam of a 0532 nm DPSS laser.

Typical Far Field

Typical far field (1 m from output aperture) beam profile. Circular beam of a 0532 nm DPSS laser.

About Matchbox Datasheet Brochure Please log-in for downloads! Drawings Control Software (Windows)

Raman Spectroscopy

Raman Spectroscopy is a powerful analytical technique that explores molecular vibrations by measuring inelastic scattering of monochromatic light. It provides valuable insights into molecular structure, composition, and chemical bonding, making it widely used in material science, chemistry, and biology. The unique spectral fingerprints obtained through Raman spectroscopy enable non-destructive and precise identification of substances, making it a versatile tool for research and quality control applications.

Interferometry

None

Gas Sensing

None

Quantum Cryptography

Quantum cryptography is a way of securing information using the principles of quantum physics. One method of quantum cryptography is quantum key distribution (QKD), which allows two parties to share a secret key that can encrypt and decrypt messages. QKD uses entangled photons, which are pairs of light particles that have a quantum connection and share the same properties. By measuring the polarization of one photon, the other photon will have the same polarization, even if they are far apart. This way, the two parties can generate a random sequence of bits that form the key. However, to create and send entangled photons from space, they need small lasers that can fit into smallsats.
