532 nm Laser

Item Code: 0532L-11B-NI-NT-NF

DPSSL Free-space

Preliminary

Full production

Replacement in due course

Not for new designs

Orders still accepted, deliveries still possible

No more orders accepted

Discontinued

Available (in stock) Not in stock

Description

The compact 532 nm module is a DPSS laser featuring high output power, very good beam quality, and superior long-term power stability. The lower-coherence version features several longitudinal modes at higher power and typically single-longitudinal mode at a power level of ~10 mW. 532 nm wavelength radiation is commonly used in fluorescence excitation, scanning microscopy, and general green light illumination. The free-space version features a small beam diameter and a very small form factor.

Last edited on: 31 July 2024

Parameter	Minimum Value	Typical Value	Maximum Value
Central wavelength, nm	531.9	532	532.3
Longitudinal modes	-	Multiple	-
Spectral line width FWHM, nm	0.02	0.1	0.3
Output power, mW ¹	-	200	-
Power stability, % (RMS, 8 hrs) ²	0.02	0.1	0.5
Power stability, % (peak-to-peak, 8 hrs) ³	0.1	0.5	3
Intensity noise, % (RMS, 20 Hz to 20 MHz) ⁴	0.5	5	30
Transversal modes	-	TEM00	-
Beam width (1/e2), mm ⁵	-	1	1.6
Beam height (1/e2), mm	-	0.8	1.4
Horizontal beam divergence, mrad	-	1.1	1.6
Vertical beam divergence, mrad	-	1.1	1.5
M² effective	-	1.2	1.5
Polarization direction ⁶	-	Vertical	-
Polarization contrast	500	1000	-
Control interface type ⁷	-	UART	-
Operation mode	-	APC (CW)	-
Input voltage, VDC	4.8	5	5.3
External power supply requirement	-	+5 V DC, 5A	-
Dimensions (WxDxH), mm ⁸	-	50 x 30 x 18	-
Beam height from the base, mm	9.9	10.4	10.9
Heat-sinking requirement, °C/W	-	<0.5	-
Optimum heatsink temperature, °C	20	25	30
Warm up time, mins (cold start)	0.2	1	2
Temperature stabilization	-	Internal TEC	-
Overheat protection	-	Yes	-
Storage temperature, °C (non-condensing)	-10	-	50
Net weight, kg	0.1	0.12	0.14
Max. power consumption, W	5	15	25
Warranty, months (op. hrs) ⁹	-	14 (10000)	-
Residual IR wavelength contrast, dB	-	20	-
RoHS	-	Yes	-
CE compliance	-	- General Product Safety Directive (GPSD) 2001/95/EC - (EMC) Directive 2004/108/EC	-
Laser safety class	-	3B	-
OEM lasers are not compliant with	-	IEC60825-1:2014 (compliant using additional accessories)	-
Country of origin	-	Lithuania	-

¹ The optical power can be tuned from virtually 0% to 100%. However, other specifications, such as central wavelength, power stability, noise, polarization ratio, beam shape, quality and circularity are not guaranteed at power levels other than factory preset power. Significantly worse power stability is to be expected at very low power levels, e.g. <3% from specified nominal power.

² The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

³ The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

⁴ Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.

⁵ Beam width and height are measured at 0.4 m from output aperture.

⁶ For lasers without integrated optical isolators.

⁷ Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.

⁸ Excluding control interface pins and an output window/fiber assembly.

⁹ Whichever occurs first. The laser has an integrated operational hours counter.

Typical spectrum

Typical spectrum of 0532 nm DPSS laser. Measured with 20 pm resolution.

Drawing

The key dimensions of a free-space MatchBox.

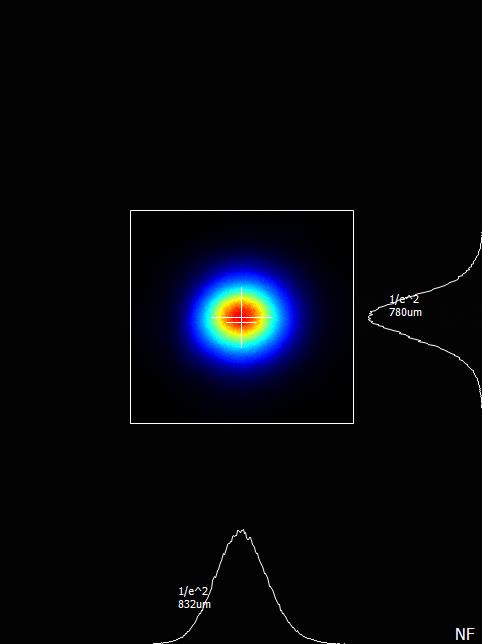

Typical Near Field

Typical near field (0.45 m from output aperture) beam profile. Circular beam of a 0532 nm DPSS laser.

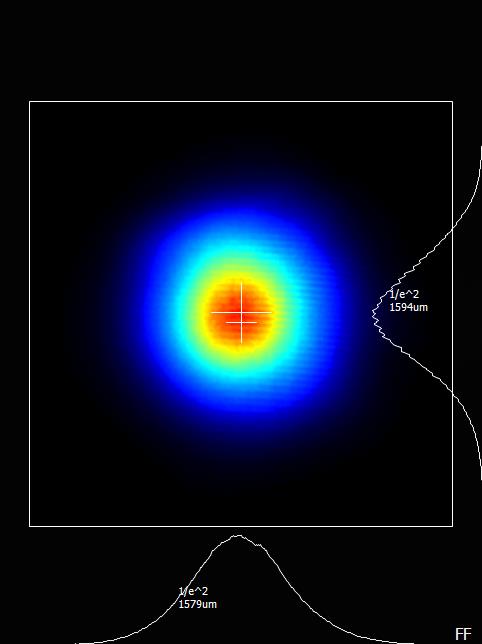

Typical Far Field

Typical far field (1 m from output aperture) beam profile. Circular beam of a 0532 nm DPSS laser.
