785 nm SLM Laser

Item Code: 0785L-21A-NI-NT-NF

VBG Diode Free-space

Preliminary

Full production

Replacement in due course

Not for new designs

Orders still accepted, deliveries still possible

No more orders accepted

Discontinued

Available (in stock) Not in stock

Description

Our compact 785 nm single longitudinal mode (SLM) diode laser, purpose-built for precision Raman spectroscopy. This laser, designed with a focus on compactness and performance. Its remarkable stability, narrow linewidth, and high beam quality make it an ideal choice for demanding Raman spectroscopy applications. Small footprint and exceptional performance empower researchers to conduct precise molecular analysis with ease, providing a reliable source for studying molecular vibrational modes and achieving outstanding spectral results. Discover the compact solution to your Raman spectroscopy needs with our 785 nm SLM laser, setting the stage for breakthroughs in analytical chemistry and materials science.

Compact size and +5 VDC operating voltage is exactly what's needed for handheld portable devices. Integrated precision driver electronics ensure low-noise and very stable operation throughout the wide temperature range. 785 near-infrared radiation features low photon energy. VBG technology delivers a low-cost solution to sophisticated Raman spectroscopy needs

Note:

Back-reflections to the laser can cause spectral widening or even a COD (Catastrophic Optical Damage) of laser diode facet. In optical systems with significant back-reflections (e.g. more than 0.5%), the laser must be protected by using an optical isolator with at least 20 dB isolation. Typical applications include interferometry, confocal microscopy (especially working with reflective samples), etc. Failure to comply with these requirements will render the warranty void.

Last edited on: 3 June 2024

Parameter	Minimum Value	Typical Value	Maximum Value
Central wavelength, nm	784.7	784.8	785.1
Longitudinal modes	-	Single	-
Spectral line width FWHM, MHz ¹	-	2	8
Output power, mW ²	-	125	-
Side-mode suppression ratio (SMSR), dB	-	50	-
Power stability, % (RMS, 8 hrs) ³	0.01	0.02	0.25
Power stability, % (peak-to-peak, 8 hrs) ⁴	0.05	0.15	0.5
Intensity noise, % (RMS, 20 Hz to 20 MHz) ⁵	0.05	0.15	0.6
Transversal modes	-	TEM00	-
Beam width (1/e2), mm ⁶	-	1	1.7
Beam height (1/e2), mm	-	1.2	1.9
Horizontal beam divergence, mrad	-	1.5	1.8
Vertical beam divergence, mrad	-	0.8	1.6
M² horizontal axis	-	1.2	1.4
M² vertical axis	-	1.3	1.6
M² effective	-	1.3	1.6
Polarization direction ⁷	-	Horizontal	-
Polarization contrast	1000	2000	-
Control interface type ⁸	-	UART	-
Operation mode	-	APC (CW)	-
Modulation bandwidth, MHz ⁹	-	N/A	-
Input voltage, VDC	4.8	5	5.3
External power supply requirement	-	+5 V DC, 1.5 A	-
Dimensions (WxDxH), mm ¹⁰	-	50 x 30 x 18	-
Beam height from the base, mm	9.9	10.4	10.9
Heat-sinking requirement, °C/W	-	1	-
Optimum heatsink temperature, °C	18	25	32
Warm up time, mins (cold start)	0.2	1	2
Temperature stabilization	-	Internal TEC	-
Overheat protection	-	Yes	-
Storage temperature, °C (non-condensing)	-10	-	50
Net weight, kg	0.1	0.12	0.14
Max. power consumption, W	0.4	2	10
Warranty, months (op. hrs) ¹¹	-	14 (10000)	-
RoHS	-	Yes	-
CE compliance	-	- General Product Safety Directive (GPSD) 2001/95/EC - (EMC) Directive 2004/108/EC	-
Laser safety class	-	3B	-
OEM lasers are not compliant with	-	IEC60825-1:2014 (compliant using additional accessories)	-
Country of origin	-	Lithuania	-
Spectral line width FWHM, pm ¹²	-	0.004	0.016

¹ Measured using HighFinesse LineWidth Analyzer LWA-10k having 10 kHz resolution. Linewidth Analyzer testing is not provided for each laser being manufactured, the standard test is OSA measurement with 20-30 pm resolution instead.

² The output power of SLM lasers shall not be tuned and SLM performance is not guaranteed at power ratings other than factory preset. However, the power setting capability is not disabled. External attenuators are recommended instead.

³ The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

⁴ The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

⁵ Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.

⁶ Beam width and height are measured at 0.4 m from output aperture.

⁷ For lasers without integrated optical isolators.

⁸ Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.

⁹ SLM lasers shall not be modulated - use external modulators instead.

¹⁰ Excluding control interface pins and an output window.

¹¹ Whichever occurs first. The laser has an integrated operational hours counter.

¹² Converted from bandwidth value.

Typical spectrum

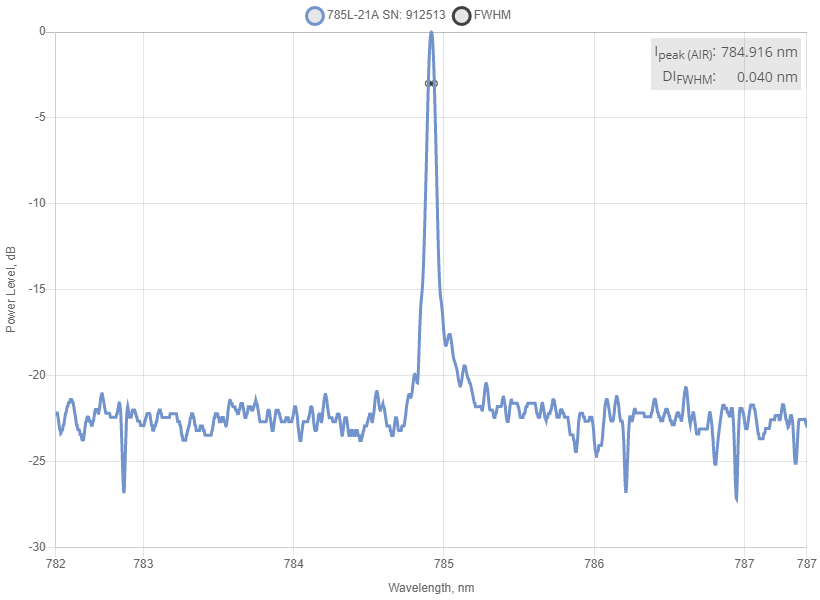

Typical spectrum of 0785 nm diode laser. Measured with 20 pm resolution.

Typical spectrum with an integrated clean-up filter

Typical spectrum of 0785 nm diode laser with an integrated clean-up filter. Measured with 20 pm resolution.

Spectrum of 785 nm SLM Laser with an integrated clean-up filter

Drawing

The key dimensions of a free-space MatchBox.

Typical Near Field

Typical near field (0.45 m from output aperture) beam profile. Non-circularized beam of a 0785 nm direct diode laser.

Typical Far Field

Typical far field (1 m from output aperture) beam profile. Non-circularized beam of a 0785 nm direct diode laser.
